You are here: Home » News » LED optics knowledge » How To Bypass A Ballast for Led Lighting?

How To Bypass A Ballast for Led Lighting?

Views: 222     Author: Katherine     Publish Time: 12-05-2024      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Understanding Ballasts and Their Function

>> What is a Ballast?

>> Why Bypass the Ballast?

Benefits of Bypassing a Ballast

Preparing for the Ballast Bypass

>> Tools and Materials Needed

>> Safety Precautions

Step-by-Step Guide to Bypass a Ballast

>> Step 1: Turn Off Power

>> Step 2: Remove Existing Fluorescent Tubes

>> Step 3: Access the Ballast

>> Step 4: Disconnect Wires from the Ballast

>> Step 5: Prepare Socket Connections

>> Step 6: Connect Input Wires

>> Step 7: Neatly Organize Wires

>> Step 8: Replace Covers and Install LED Tubes

>> Step 9: Restore Power

Important Considerations After Bypassing a Ballast

>> Labeling Your Fixture

>> Professional Help

Conclusion

Related Questions and Answers

>> 1. What types of LED tubes require a ballast bypass?

>> 2. Can I use plug-and-play LED tubes instead of bypassing a ballast?

>> 3. Is it safe to bypass a ballast myself?

>> 4. What happens if I do not bypass the ballast?

>> 5. How can I ensure my new LED lights work properly after installation?

The transition from traditional fluorescent lighting to LED technology has become increasingly popular due to the numerous benefits that LEDs offer. One common step in this transition is bypassing the ballast, which is essential for installing LED tube lights effectively. This article will guide you through the process of bypassing a ballast for LED lighting, explaining the reasons behind this modification, the steps involved, and some important considerations.

Understanding Ballasts and Their Function

What is a Ballast?

A ballast is an electrical device used in fluorescent lighting systems. Its primary functions are to provide the necessary starting voltage to ignite the lamp and to regulate the current flowing through it once it is lit. Traditional ballasts can be electromagnetic or electronic, and they consume energy continuously, which can lead to higher electricity bills. Electromagnetic ballasts are often heavier and bulkier, while electronic ballasts are more compact and efficient but still contribute to energy waste. Understanding how ballasts work is crucial for anyone looking to switch to LED lighting, as it lays the foundation for why bypassing them is beneficial.

Why Bypass the Ballast?

Bypassing the ballast is necessary when switching to LED tube lights because most LED tubes are designed to operate without a ballast. Instead of relying on the ballast for power regulation, LEDs use an internal driver that converts high voltage AC power into low voltage DC power. This change not only simplifies the wiring but also enhances energy efficiency by eliminating the energy wasted by the ballast. Additionally, many LED tubes are designed specifically for direct wiring, which means they can operate more reliably and efficiently without the ballast's interference. This shift represents a significant advancement in lighting technology that can lead to substantial cost savings over time.

Benefits of Bypassing a Ballast

- Energy Efficiency: LED lights consume significantly less power than fluorescent lights, and by removing the ballast, you further reduce energy consumption. This reduction not only helps lower your electricity bills but also contributes to a smaller carbon footprint. In commercial settings, where lighting can account for a large portion of energy usage, this efficiency can translate into substantial savings.

- Cost Savings: LEDs have a longer lifespan than fluorescent tubes, which means lower replacement costs. Additionally, without a ballast, you won't incur future costs related to ballast failure. The average lifespan of an LED tube can exceed 25,000 hours compared to about 10,000 hours for fluorescent tubes. This longevity reduces maintenance efforts and costs associated with frequent replacements.

- Improved Lighting Quality: LED lights provide better color rendering and do not flicker like fluorescent lights, leading to improved visual comfort. Many people find that LEDs produce a brighter and more pleasant light quality that enhances their work environment or living space. This improvement can be particularly beneficial in settings where accurate color perception is essential, such as art studios or retail environments.

- Environmental Impact: LEDs are more environmentally friendly as they do not contain harmful substances like mercury found in fluorescent tubes. Furthermore, their energy efficiency contributes to reduced greenhouse gas emissions from power plants. By choosing LEDs and bypassing ballasts, you are making a choice that supports sustainability and environmental responsibility.

Preparing for the Ballast Bypass

Tools and Materials Needed

Before starting the bypass process, gather the following tools and materials:

- Screwdriver

- Wire cutters

- Wire strippers

- Electrical tape or wire connectors

- Multimeter (for safety checks)

- Replacement LED tubes (ensure they are compatible with a ballast bypass)

Having these tools ready will streamline your project and ensure you don't have to stop midway through due to missing equipment. It's also advisable to have a flashlight handy if you're working in dimly lit areas.

Safety Precautions

Safety should always be your top priority when working with electrical components. Before beginning any work:

- Turn off the power at the circuit breaker.

- Use a multimeter to confirm that no electricity is flowing to the fixture.

- Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.

These precautions help mitigate risks associated with electrical work. It's also wise to inform others in your household or workplace about your project so they don't accidentally turn on power while you're working.

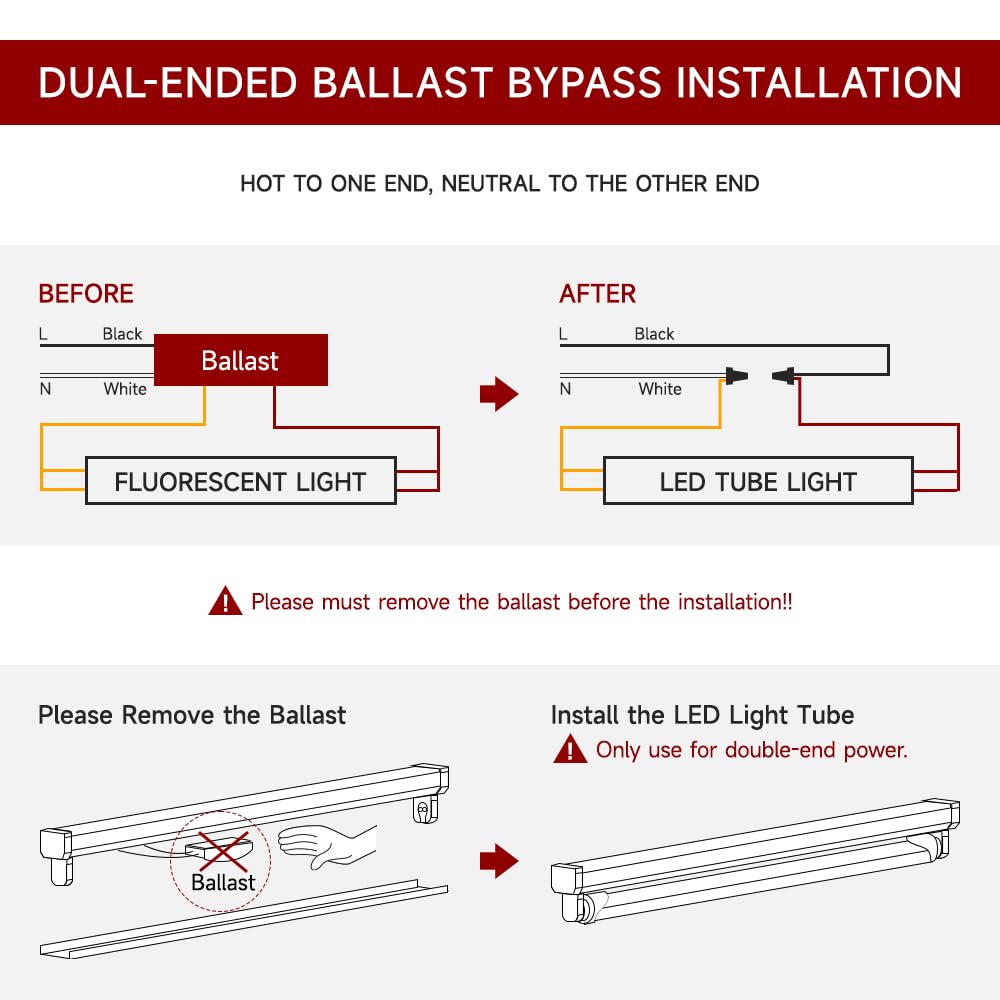

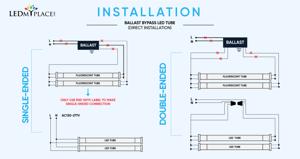

Direct Wire LED Tubes

Step-by-Step Guide to Bypass a Ballast

Step 1: Turn Off Power

Start by turning off the power supply at the circuit breaker. This step is crucial to avoid electric shock during the process. If you're unsure which breaker controls your lighting fixture, it's best to turn off all breakers in that area temporarily until you confirm which one powers your lights.

Step 2: Remove Existing Fluorescent Tubes

Carefully remove any existing fluorescent tubes from their sockets. Ensure that you handle them gently to avoid breakage. If possible, place them in a safe area away from where you'll be working so they don't pose a risk of shattering during your project.

Step 3: Access the Ballast

Locate the ballast inside your light fixture. It is typically housed within a cover that may need to be unscrewed or unclipped. Take care when removing this cover; some fixtures may have sharp edges that could cause cuts or scrapes.

Step 4: Disconnect Wires from the Ballast

Once you have access to the ballast, identify and cut all wires connected to it. These typically include hot (black), neutral (white), and ground (green or bare) wires. Cut them close to the ballast so you have enough wire length left for reconnection later. Be sure not to damage any other wiring within the fixture during this process.

Step 5: Prepare Socket Connections

Next, you will need to prepare your socket connections. If your fixture uses non-shunted sockets (common in single-ended installations), you will need to connect both ends of each socket together using wire connectors or by shunting them. This step ensures that electricity flows correctly through each socket once you've completed your installation.

Step 6: Connect Input Wires

Connect your hot wire (black) directly to one side of each socket. Then connect your neutral wire (white) directly to the other side of each socket. Ensure all connections are secure and well-insulated using electrical tape or wire connectors. Double-check your connections before proceeding; loose wires can lead to flickering lights or even electrical shorts.

Step 7: Neatly Organize Wires

Once all connections are made, tuck away any excess wiring neatly within the fixture housing. This organization helps prevent any potential hazards and makes future maintenance easier. Keeping wires organized also improves airflow around electrical components, reducing heat buildup which can extend their lifespan.

Step 8: Replace Covers and Install LED Tubes

After ensuring everything is secure, replace any covers you removed earlier. Now insert your new LED tubes into their respective sockets. Ensure they are properly seated; improper installation can lead to poor performance or damage.

Step 9: Restore Power

Finally, turn on the power at the circuit breaker and test your new LED lights. They should illuminate without any flickering or issues. If they do not light up as expected, double-check all connections before troubleshooting further.

Important Considerations After Bypassing a Ballast

Labeling Your Fixture

It's good practice to label your light fixture after completing a ballast bypass. This label should indicate that it has been modified for use with LED tubes only, which can help inform anyone who may work on it in the future about its specific configuration.

Professional Help

If you are unsure about any part of this process or if you encounter unexpected issues, consider hiring a licensed electrician. Working with electrical systems can be hazardous if not done correctly; seeking professional assistance ensures safety and compliance with local building codes.

LED Tube Installation

Conclusion

Bypassing a ballast for LED lighting can significantly improve energy efficiency and reduce maintenance costs while enhancing lighting quality in your space. The steps outlined above provide a comprehensive guide on how to perform this modification safely and effectively while maximizing the benefits of modern lighting technology.

Related Questions and Answers

1. What types of LED tubes require a ballast bypass?

Type B LED tubes require a ballast bypass as they do not use an external ballast for operation; they rely solely on direct wiring for optimal performance.

2. Can I use plug-and-play LED tubes instead of bypassing a ballast?

Yes, plug-and-play LED tubes can be used without bypassing a ballast; however, they may not be as energy-efficient as Type B tubes since they still rely on existing ballasts for operation.

3. Is it safe to bypass a ballast myself?

If you follow safety precautions and have basic electrical knowledge, it can be safe; otherwise, consult with an electrician who has experience in lighting modifications.

4. What happens if I do not bypass the ballast?

If you do not bypass the ballast when installing Type B LED tubes, they may not function properly or could even be damaged due to incompatibility with their design specifications.

5. How can I ensure my new LED lights work properly after installation?

After installation, check all connections are secure and test each light individually after restoring power; ensure they illuminate correctly without flickering or dimming issues by observing them under different conditions throughout their first few uses.

Content Menu
Brightlx Optics is a leading manufacturer focused on LED lens CUSTOMIZATION, we can offer LED lens design, Prototype, mold tooling, and injection service. We have been servicing more than 2500 client cases, with more than 150 long-term partners, each month R&D ability is 60 LED optics mold cases. So we have very rich experience and optics technology to support our customised market, we will think from the project to keep the optics solution is the best choice, and effective communication will help keep the project going smoothly.

QUICK LINKS

PRODUCTS

CONTACT US

Phone: +86 13714576491 (Jessica)
WhatsApp: +86 15768178169
Office Address: 409 Building C, Zone A, HuaMeiJu Business Center, BaoAn District, Shenzhen 518102 China
Factory Address: F Building,G Zone, GongHe Third Industry Park,Shajing, BaoAn District,Shenzhen 518104 China
Copyright ©  2024  Brightlx Ltd. All Rights Reserved.  Sitemap
