How to Choose the Perfect LED Street Light Lens for Your Project?

Views: 222     Author: Amanda     Publish Time: 07-11-2025      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Understanding LED Street Light Lenses

Types of LED Street Light Lenses

>> Primary Lenses

>> Secondary Lenses

>> Lens Arrays

>> Symmetrical and Asymmetrical Lenses

Key Factors to Consider

>> Beam Angle

>> Light Distribution Pattern

>> Material and Durability

>> Compatibility

>> Ingress Protection

Materials Used in LED Street Light Lenses

Beam Angles and Light Distribution

Installation Guide: Step-by-Step

>> Step 1: Preparation

>> Step 2: Mounting the Lens

>> Step 3: Fixing the Street Light

>> Step 4: Wiring and Testing

>> Step 5: Final Inspection

Common Applications

Advanced Considerations for LED Street Light Lens Selection

>> Thermal Management

>> Anti-Glare Features

>> Light Pollution Reduction

>> Customization and ODM/OEM Services

Conclusion

FAQ

>> 1. What is the main function of an LED Street Light Lens?

>> 2. How do I choose the correct beam angle for my project?

>> 3. Which material is better: PC or PMMA?

>> 4. Are LED Street Light Lenses compatible with all LED types?

>> 5. How do I maintain and clean LED Street Light Lenses?

Selecting the right LED Street Light Lens is crucial for optimizing illumination, energy efficiency, and safety in outdoor environments. Whether you are a city planner, contractor, or lighting designer, understanding the different types of LED street light lenses and their applications will help you achieve the best results for your project. This comprehensive guide will walk you through the essential factors, types, materials, and installation tips for choosing the perfect LED Street Light Lens.

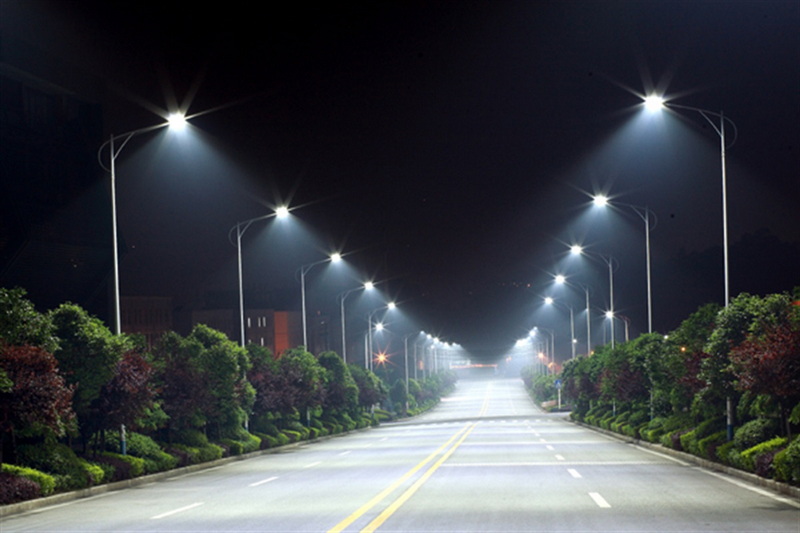

How to Choose the Perfect LED Street Light Lens for Your Project

Understanding LED Street Light Lenses

LED Street Light Lenses are optical components designed to control the direction, spread, and intensity of light emitted from LED sources. By shaping the light output, these lenses enhance visibility, reduce light pollution, and improve energy efficiency.

LED Street Light Lenses play a pivotal role in modern urban lighting by focusing illumination where it is needed most, minimizing glare, and ensuring uniform light distribution. They are commonly used in street lighting, parking lots, highways, and public spaces.

The lens works by refracting and reflecting light rays to produce a specific beam pattern. This optical control is essential because LEDs themselves emit light in a wide, often uneven pattern that is not always suitable for street lighting applications. A well-chosen lens can transform the raw LED light into a precise, uniform, and glare-free illumination pattern that meets safety and regulatory standards.

Types of LED Street Light Lenses

Choosing the ideal LED Street Light Lens involves understanding the different types available, each offering unique optical properties:

Primary Lenses

Primary lenses sit directly on the LED chip and control the initial spread and direction of light. These lenses typically have simple shapes like hemispheres or aspheres and are responsible for shaping the immediate light output from the LED. They are essential for managing the initial beam angle and intensity.

Secondary Lenses

Secondary lenses are placed above primary optics and fine-tune the beam angle and distribution. They often use Total Internal Reflection (TIR) technology, which allows for precise control of light direction and intensity. Secondary lenses can create focused beams for street corridors or wider beams for open areas.

Lens Arrays

Lens arrays combine multiple lenses in a single unit, ideal for wide-area or high-power street lighting applications. By grouping lenses, these arrays can distribute light evenly over large surfaces, making them perfect for highways, parking lots, and large public spaces.

Symmetrical and Asymmetrical Lenses

Symmetrical lenses distribute light evenly in all directions, suitable for open spaces like parks or plazas. Asymmetrical lenses direct light in a specific direction, reducing light trespass into unwanted areas such as residential windows, and improving road safety by illuminating sidewalks and roadways more effectively.

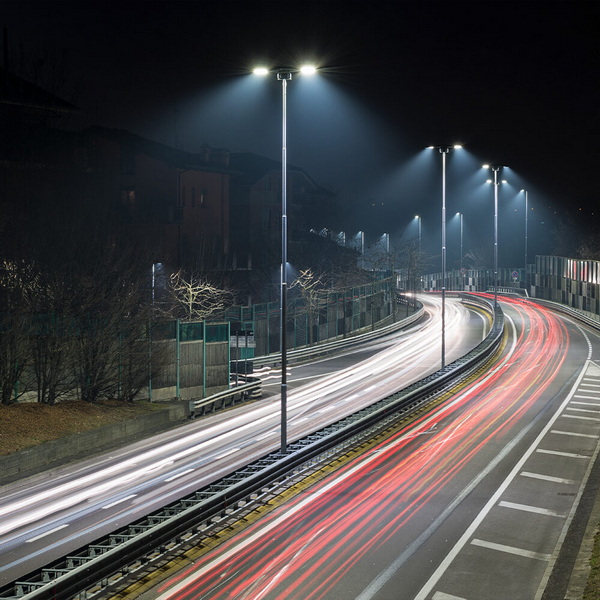

Top Manufacturers of LED Street Light Lenses You Should Know

Key Factors to Consider

When selecting an LED Street Light Lens, consider the following factors to ensure optimal performance for your project:

Beam Angle

The beam angle determines how wide or narrow the light spreads from the fixture. Narrow beam angles (e.g., 40°) are ideal for spot lighting or focused illumination on specific areas such as crosswalks or intersections. Wide beam angles (e.g., 120°) cover larger areas and are suitable for general street lighting or parking lots.

Choosing the correct beam angle is essential to avoid dark spots or excessive light spill, both of which can compromise safety and efficiency.

Light Distribution Pattern

Light distribution patterns are categorized as Type I, II, III, IV, or V, each designed for specific road widths and lighting needs:

- Type I: Narrow, elongated pattern for sidewalks and paths.

- Type II: Slightly wider, suitable for narrow roads and sidewalks.

- Type III: Wider distribution for residential streets and wider roadways.

- Type IV: Asymmetrical pattern for perimeter lighting.

- Type V: Circular, symmetrical pattern for large open areas.

Selecting the appropriate pattern ensures uniform illumination, reduces glare, and enhances visibility for drivers and pedestrians.

Material and Durability

LED street light lenses are typically made from Polycarbonate (PC) or Polymethyl Methacrylate (PMMA). PC offers higher impact resistance and can withstand extreme temperatures, making it ideal for harsh outdoor environments. PMMA provides excellent optical clarity and UV resistance but is less impact-resistant than PC.

The choice of material affects the lens's lifespan, optical performance, and resistance to weathering, so it should align with the environmental conditions of the installation site.

Compatibility

Ensure the lens matches the LED package type (e.g., 3030, 3535, 5050) and the fixture's mechanical design. Compatibility is critical to avoid installation issues and to maintain optimal optical performance.

Ingress Protection

For outdoor applications, lenses should have a high Ingress Protection (IP) rating to resist dust, moisture, and other environmental factors. This ensures longevity and consistent performance in all weather conditions.

Materials Used in LED Street Light Lenses

The choice of material impacts the lens's optical clarity, durability, and resistance to environmental factors.

- Polycarbonate (PC): Known for its toughness and high impact resistance, PC lenses can withstand physical impacts, making them suitable for high-traffic areas where vandalism or accidental damage may occur. They operate effectively in temperatures ranging from -40°C to +110°C and have over 90% light transmission.

- Polymethyl Methacrylate (PMMA): Also known as acrylic, PMMA lenses offer superior optical clarity and UV resistance. They are less impact-resistant compared to PC but provide excellent light transmission and are ideal for applications where optical performance is paramount and physical impacts are less likely.

Beam Angles and Light Distribution

The beam angle and light distribution pattern of an LED Street Light Lens determine how effectively light covers the target area. A narrow beam angle focuses light on a small area, increasing intensity and reducing light spill. This is useful for highlighting specific zones like pedestrian crossings or narrow streets.

Wide beam angles cover broader areas, reducing the number of fixtures needed but requiring careful design to avoid dark spots. The distribution pattern (Type I-V) further refines how light is spread, ensuring that streets, sidewalks, and open spaces are illuminated according to their unique requirements.

Properly designed lenses minimize glare, improve visibility, and reduce energy consumption by directing light only where it is needed.

Best LED Street Light Lens for Maximum Efficiency in 2025

Installation Guide: Step-by-Step

Proper installation of your LED Street Light Lens ensures maximum performance and longevity. Follow these steps for a successful setup:

Step 1: Preparation

Before installation, verify that all components and tools are available. Ensure the power supply is turned off to avoid electrical hazards. Handle lenses carefully to prevent scratches or damage, which can degrade optical performance.

Step 2: Mounting the Lens

Align the lens precisely with the LED module. Secure it using screws, clips, or adhesive as recommended by the manufacturer. For lens arrays, ensure each LED aligns correctly with its corresponding lens to maintain uniform light distribution.

Step 3: Fixing the Street Light

Attach the assembled LED street light to the mounting pole or bracket. Adjust the fixture's angle and orientation to optimize light coverage based on the site's layout and lighting plan. Tighten all fasteners to ensure stability against wind and vibration.

Step 4: Wiring and Testing

Connect the wiring according to the electrical schematic. Test for proper insulation and ensure there are no exposed wires or loose connections. Power on the fixture and verify that the light distribution is uniform and meets the design specifications.

Step 5: Final Inspection

Conduct a thorough inspection to confirm secure mounting and correct alignment. Clean the lens surface if necessary to remove fingerprints or dust that could affect light output.

Common Applications

LED Street Light Lenses are versatile and used in a variety of outdoor lighting scenarios:

- Urban and Rural Streets: Provide uniform illumination to enhance safety and visibility for drivers and pedestrians.

- Highways and Expressways: Use focused beams to reduce glare and light pollution while ensuring clear visibility at high speeds.

- Parking Lots and Public Spaces: Offer wide coverage with minimal dark spots, improving security and convenience.

- Tunnels and Underpasses: Require specialized lenses to manage confined space lighting and reduce glare.

Beyond these, LED lenses are also used in parks, campuses, industrial areas, and sports complexes, demonstrating their adaptability to diverse lighting challenges.

Advanced Considerations for LED Street Light Lens Selection

Thermal Management

LEDs generate heat, which can affect both the LED chip and the lens material. Some lenses are designed with thermal stability in mind, resisting deformation or discoloration under high temperatures. Selecting lenses with good thermal properties ensures consistent optical performance and extends fixture lifespan.

Anti-Glare Features

Glare can be a significant issue in street lighting, causing discomfort and reducing visibility. Certain LED lenses incorporate anti-glare designs such as micro-structures or diffusing surfaces that soften the light output without sacrificing intensity.

Light Pollution Reduction

With increasing focus on environmental sustainability, lenses that minimize upward light spill and skyglow are preferred. These lenses help cities comply with dark-sky regulations and reduce energy waste.

Customization and ODM/OEM Services

For specialized projects, custom-designed LED lenses can be developed to meet unique optical and mechanical requirements. Many LED lens manufacturers offer ODM (Original Design Manufacturer) and OEM (Original Equipment Manufacturer) services, allowing clients to tailor lens designs to specific LED packages, beam patterns, or aesthetic preferences.

Conclusion

Choosing the perfect LED Street Light Lens is essential for achieving efficient, durable, and high-quality outdoor lighting. By understanding the different lens types, materials, beam angles, and installation methods, you can tailor your lighting solution to any project's unique requirements. The right lens not only enhances illumination but also contributes to energy savings, reduced maintenance, and improved safety for communities. Investing time in selecting the appropriate lens will ensure your LED street lighting project delivers optimal performance and long-term value.

Difference LED Street Light Lens Types

FAQ

1. What is the main function of an LED Street Light Lens?

The primary function is to control and direct the light emitted from LEDs, ensuring it covers the desired area efficiently while minimizing glare and light pollution.

2. How do I choose the correct beam angle for my project?

Select a narrow beam for focused lighting (e.g., highways) and a wide beam for general area lighting (e.g., parking lots). The choice depends on the width of the road and the desired illumination pattern.

3. Which material is better: PC or PMMA?

PC is more impact-resistant and suitable for harsh environments, while PMMA offers better optical clarity and UV resistance. The choice depends on your specific application and environmental conditions.

4. Are LED Street Light Lenses compatible with all LED types?

No, lenses are designed for specific LED packages (e.g., 3030, 3535, 5050). Always check compatibility with your LEDs and fixture before purchasing.

5. How do I maintain and clean LED Street Light Lenses?

Regularly inspect for dust or debris. Clean with a soft, non-abrasive cloth and avoid harsh chemicals. Ensure the power is off before performing maintenance.
