How To Direct Wire Led Under Cabinet Lighting?

Views: 222     Author: Katherine     Publish Time: 12-05-2024      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Understanding LED Under Cabinet Lighting

>> Benefits of LED Under Cabinet Lighting

Tools and Materials Needed

>> Tools

>> Materials

Planning Your Installation

>> Determine Placement

>> Measure and Mark

>> Check Electrical Requirements

Preparing for Installation

>> Disconnect Power

>> Run Electrical Wiring

>> Install Electrical Boxes

Installing LED Under Cabinet Lights

>> Mounting Fixtures

>> Wiring Connections

>> Testing Connections

Finalizing Installation

>> Secure Wiring

>> Clean Up

Troubleshooting Common Issues

>> Flickering Lights

>> Lights Not Turning On

>> Overheating Fixtures

Maintenance Tips for LED Under Cabinet Lighting

Conclusion

Frequently Asked Questions

>> 1.What type of LED lights are best for under cabinets?

>> 2.Can I install under cabinet lighting without an electrician?

>> 3.How do I choose between hardwired vs plug-in options?

>> 4.Is it safe to install under cabinet lighting myself?

>> 5.What should I do if my LED strip light doesn't stick?

Installing LED under cabinet lighting is an excellent way to enhance the ambiance of your kitchen or workspace while improving visibility. This guide will walk you through the steps necessary to direct wire LED under cabinet lighting, ensuring a clean and professional installation. By following these detailed instructions, you can transform your space into a well-lit area that is both functional and visually appealing.

Understanding LED Under Cabinet Lighting

LED under cabinet lighting is a popular choice due to its energy efficiency, long lifespan, and versatility. These lights can be installed in various configurations, including strips, puck lights, and linear fixtures. When properly installed, they provide both functional and aesthetic benefits, making them an ideal solution for illuminating countertops and workspaces.

Benefits of LED Under Cabinet Lighting

The advantages of using LED under cabinet lighting extend beyond mere illumination.

- Energy Efficiency: LEDs consume significantly less power compared to traditional incandescent bulbs. This not only reduces your electricity bills but also contributes to a more sustainable lifestyle by lowering your carbon footprint.

- Longevity: LED lights can last up to 25,000 hours or more, reducing the need for frequent replacements. This longevity means less waste and fewer trips to the store for replacements, which can save you both time and money.

- Variety: Available in various colors and styles, LEDs can complement any decor. From warm white tones that create a cozy atmosphere to bright daylight options that enhance visibility, there's an LED solution for every preference.

- Low Heat Emission: Unlike incandescent lights, LEDs emit very little heat, making them safer and more comfortable for kitchen use. This feature not only helps maintain a cooler environment but also reduces the risk of burns or fire hazards associated with traditional lighting.

Tools and Materials Needed

Before starting your installation, gather the necessary tools and materials. Having everything ready will streamline the process and ensure that you do not have to interrupt your work to find missing items.

Tools

- Screwdriver: A reliable screwdriver is essential for securing fixtures and electrical boxes.

- Wire Strippers: These will help you prepare your wiring by removing insulation without damaging the wire itself.

- Drill with Drill Bits: A drill will be necessary for creating holes for mounting fixtures or running wires through cabinetry.

- Electrical Tape: This is used to secure wire connections and provide extra insulation.

- Voltage Tester: A voltage tester ensures that no power is flowing through the wires before you begin working on them.

- Fish Tape: This tool is invaluable for running wires through walls or cabinets where access may be limited.

- Measuring Tape: Accurate measurements are crucial for ensuring that your lights are placed correctly.

Materials

- LED Strip Lights or Fixtures: Choose high-quality LEDs that suit your lighting needs and aesthetic preferences.

- Electrical Wire: Select the appropriate gauge for your circuit; consult local codes if unsure.

- Wire Nuts or Connectors: These are essential for making secure electrical connections between wires.

- Electrical Box: If required by local codes or if you're installing multiple fixtures on one circuit, an electrical box provides a safe housing for connections.

- Cable Clamps or Staples: Use these to secure wiring along walls or inside cabinets to prevent movement over time.

- Power Supply: If using low-voltage LEDs, ensure you have a suitable power supply that meets the wattage requirements of your fixtures.

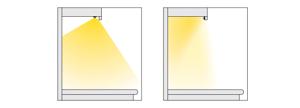

LED Under Cabinet Lighting

Planning Your Installation

Proper planning is crucial for a successful installation. Taking the time to think through each step will help avoid mistakes that could lead to costly repairs or unsafe conditions.

Determine Placement

Identify where you want to install the under cabinet lights. Common locations include:

- Directly under wall cabinets in kitchens where food preparation occurs.

- Above workspaces in garages or workshops where visibility is essential.

Consider factors such as how often you use these spaces and what tasks require additional light. Ensure that the placement allows for optimal light distribution without obstructing cabinet doors or interfering with other appliances.

Measure and Mark

Using a measuring tape, mark the locations for your lights carefully. For LED strips, measure the length needed and plan for any cuts required. Accurate measurements will ensure that your lights fit perfectly within the designated space, enhancing both functionality and appearance.

Check Electrical Requirements

Before proceeding, check your home's electrical system. Ensure that you have a suitable circuit available for your installation. If you're unsure about your electrical setup or whether it can handle additional loads, consult a licensed electrician who can assess your system's capacity safely.

DIY LED Strip Lights

Preparing for Installation

Once you have planned your installation, it's time to prepare the area. Preparation is key to ensuring a smooth installation process.

Disconnect Power

Safety is paramount when working with electricity. Turn off power at the circuit breaker to avoid any accidents during installation. It's also wise to use a voltage tester on the wires you'll be working with to confirm that no current is present before touching them.

Run Electrical Wiring

If you are hardwiring your LEDs, run electrical wiring from your power source to the location of your lights. Use fish tape to guide wires through walls or cabinets if necessary. Make sure to follow local electrical codes regarding wire routing and support.

Install Electrical Boxes

If required by local codes or if you're installing multiple fixtures on one circuit, install electrical boxes at each fixture location. Secure them properly to ensure they can support the weight of the fixtures without sagging over time.

Installing LED Under Cabinet Lights

With everything prepared, you can begin installing your LED under cabinet lights. This is where your planning pays off as you start bringing light into your space.

Mounting Fixtures

If you are using fixed fixtures:

1. Position each fixture under the cabinet where marked based on your earlier measurements.

2. Use screws to secure them in place firmly; ensure they are level for a professional appearance.

3. For strip lights, peel back the adhesive backing carefully and press firmly against the surface; make sure no air bubbles form underneath.

Wiring Connections

For direct wiring:

1. Strip about half an inch of insulation from the ends of your wires using wire strippers.

2. Connect the wires from the LED fixture to the power supply wires using wire nuts or connectors; match colors (black to black, white to white) unless otherwise specified by manufacturer instructions.

3. Ensure that connections are tight and secure; loose connections can lead to flickering lights or even shorts.

Testing Connections

Before finalizing everything:

1. Turn on the power at the circuit breaker slowly; do not rush this step as it's crucial for safety.

2. Test each light fixture individually using its switch; ensure they work correctly without flickering.

3. If any lights do not illuminate, double-check connections and ensure there are no shorts in the wiring; troubleshooting now can save time later.

Finalizing Installation

Once all fixtures are tested and working:

Secure Wiring

Use cable clamps or staples to secure wiring along walls or inside cabinets; this prevents movement or damage over time and keeps everything neat and tidy.

Clean Up

Remove any debris from your work area thoroughly; ensure that all tools are accounted for before finishing up. A clean workspace not only looks better but also reduces safety hazards associated with cluttered areas.

Troubleshooting Common Issues

Even with careful planning and installation, issues may arise during or after installation. Here are some common problems along with their solutions:

Flickering Lights

If your LED lights flicker after installation:

1. Check all connections again to ensure they are secure; sometimes vibrations can loosen connections over time.

2. Confirm that your power supply voltage matches the requirements of your LED fixtures; mismatched voltages can cause erratic behavior in LEDs.

3. Inspect for any damaged wires that may cause intermittent connections; replace any damaged sections immediately.

Lights Not Turning On

If some or all of your lights do not turn on:

1. Verify that power is reaching the fixtures by testing voltage with a multimeter; this will help identify if there's an issue upstream in your circuit.

2. Ensure that all wire connections are properly made and secured; sometimes it helps to re-strip wires fresh if they seem corroded or damaged.

3. Check if a fuse has blown in your circuit breaker panel; replacing blown fuses can restore functionality quickly.

Overheating Fixtures

If fixtures feel hot to the touch:

1. Ensure that they are rated for use in enclosed spaces if applicable; overheating could indicate improper fixture usage.

2. Check if there is adequate ventilation around the fixtures; poor airflow can lead to heat buildup which may shorten their lifespan.

3. Replace any faulty components as necessary; always opt for high-quality replacements designed specifically for use with LED systems.

Maintenance Tips for LED Under Cabinet Lighting

To keep your under cabinet lighting functioning optimally over time:

- Regularly clean fixtures using a soft cloth to remove dust and debris that can block light output; this simple task enhances brightness significantly.

- Inspect wiring periodically for signs of wear or damage; catching issues early can prevent larger problems down the line.

- Replace any burnt-out LEDs promptly; maintaining consistent lighting levels ensures safety in work areas while enhancing overall aesthetics.

Conclusion

Directly wiring LED under cabinet lighting is a straightforward process when approached methodically and safely. By following these steps carefully, you can achieve a professional-looking installation that provides long-lasting benefits while enhancing both functionality and visual appeal in your home or workspace.

Frequently Asked Questions

1.What type of LED lights are best for under cabinets?

LED strip lights are popular due to their flexibility and ease of installation but puck lights also provide focused illumination ideal for specific tasks such as cooking or crafting.

2.Can I install under cabinet lighting without an electrician?

Yes, if you have basic electrical knowledge and follow safety protocols diligently; however, consult an electrician if unsure about local codes or safety practices as improper installations can lead to hazards.

3.How do I choose between hardwired vs plug-in options?

Hardwired options provide a cleaner look without visible cords but require more installation effort; plug-in options are easier but may not be as aesthetically pleasing depending on how visible outlets are in relation to cabinetry design.

4.Is it safe to install under cabinet lighting myself?

As long as you follow safety guidelines meticulously while adhering strictly local electrical codes regarding installations—turning off power before beginning work ensures safety throughout this process!

5.What should I do if my LED strip light doesn't stick?

Ensure surfaces are clean and dry before application; consider using additional adhesive strips specifically designed for mounting purposes if necessary—this will enhance adhesion on certain surfaces like laminate finishes often found in kitchens!
