LED lighting has become increasingly popular due to its energy efficiency, long lifespan, and versatility. Whether you want to install LED strip lights in your home, set up LED bulbs, or create a custom lighting solution, understanding how to wire LED lighting is essential. This guide will provide you with detailed instructions on wiring LED lights safely and effectively, ensuring that you achieve the desired lighting effects while maintaining safety and functionality.
LED (Light Emitting Diode) lights are semiconductor devices that emit light when an electric current passes through them. They are available in various forms, including bulbs, strip lights, and panels. Before wiring LED lighting, it's crucial to understand the components involved in the system. This knowledge will help you make informed decisions about installation and troubleshooting.
LED lighting systems consist of several key components that work together to produce light efficiently.
- LED Strips: These are flexible circuit boards populated with surface-mounted light-emitting diodes. They come in various lengths and can be cut to fit specific spaces, making them ideal for accent lighting or under-cabinet illumination.
- Power Supply: This component converts mains electricity to the lower voltage required by LED lights, typically 12V or 24V. Choosing the right power supply is critical for ensuring that your LEDs operate correctly without flickering or dimming.
- Connectors: Used for connecting wires to LED strips or bulbs securely, connectors can be solderless or soldered. Solderless connectors are convenient for quick installations, while soldered connections provide a more permanent solution.
- Wires: Conducting electricity from the power supply to the LED lights, wires come in various gauges and lengths. Selecting the appropriate wire gauge is essential for minimizing voltage drop and ensuring efficient operation.
Before starting any electrical work, safety should be your top priority. Working with electricity can be hazardous if proper precautions are not taken. Always turn off the power at the circuit breaker before beginning your installation. Use insulated tools and wear rubber-soled shoes to prevent electrical shocks. If you are unsure about any step in the process, consider consulting a professional electrician who can guide you through the installation safely.
In addition to turning off power, wearing safety gear such as gloves and goggles can protect you from accidental contact with live wires or flying debris during installation. Ensuring that your workspace is well-lit and organized will also help reduce the risk of accidents.
Before wiring your LED lights, gather all necessary tools and materials. Proper preparation will streamline the installation process and help you avoid unnecessary delays.
Having the right tools on hand is crucial for a successful installation.
- Wire Strippers: These are essential for removing insulation from wires without damaging the copper underneath.
- Soldering Iron: If soldering is required for your connections, a quality soldering iron will ensure strong and reliable joints.
- Screwdriver: A set of screwdrivers will help you secure fixtures or mounts as needed.
- Multimeter: This tool is invaluable for testing connections and ensuring that voltage levels are correct before powering up your lights.
- Heat Shrink Tubing or Electrical Tape: These materials are used to insulate connections and prevent short circuits.
In addition to tools, gather all necessary materials before starting your project.
- LED Light Strips or Bulbs: Choose high-quality products that suit your lighting needs and preferences.
- Appropriate Power Supply: Ensure that it matches the voltage requirements of your LEDs.
- Connectors: Decide whether you prefer solderless connectors for ease of use or soldered connections for durability.
- Wires: Select wires that are appropriate for your setup based on length and gauge.
Now that you have everything ready, follow these steps to wire your LED lighting effectively. Each step is designed to guide you through the process methodically.
The first step is to determine the voltage and wattage requirements of your LED lights. Most LED strips operate at either 12V or 24V. Check the specifications on the packaging or manufacturer's website. Ensure that your power supply matches these requirements; using an incorrect voltage can damage your LEDs or cause them to perform poorly.
If you are using LED strip lights, accurately measure the area where you plan to install them. Cutting them correctly ensures a clean fit without excess material hanging over edges. Cut the strips to the desired length along designated cut lines; these lines are usually marked clearly on the strip itself. Make sure not to cut between these lines as it can damage the LEDs and render sections unusable.
If you are using solderless connectors, strip about half an inch of insulation from each end of your wires using wire strippers. For soldered connections, heat your soldering iron and apply solder flux to both the wire ends and the copper pads on the LED strip before heating them together with solder. This preparation ensures good electrical contact and minimizes resistance at connection points.
For solderless connectors, insert the stripped end of the wire into one side of the connector and press down until it clicks into place securely; this creates a solid connection without needing additional tools. For soldered connections, carefully place the tinned wire onto a copper pad on the strip and apply heat with your soldering iron until the solder flows around both components—allow it to cool before moving on.

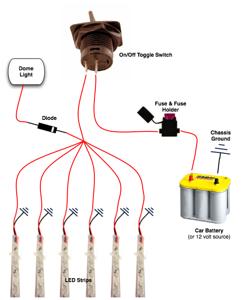

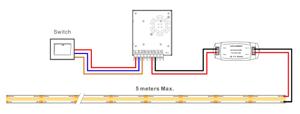

Connect your power supply to the LED strips by matching positive (+) and negative (-) terminals correctly—this is crucial for proper operation. If using a plug-in power supply, connect it directly to an outlet after ensuring all connections are secure. Always double-check polarity before powering up; incorrect connections can lead to malfunction.
Before mounting everything in place permanently, turn on the power supply to test if your LEDs light up correctly. If they do not turn on, double-check all connections for correct polarity and secure fittings—this step helps identify issues early on before finalizing installation.
Once confirmed that everything works as expected, mount your LED strips or bulbs in their desired locations using adhesive backing on strip lights or screws for bulb fixtures as required. Make sure they are fixed securely so they do not come loose over time; this ensures longevity in performance.
Sometimes things don't go as planned during installation; being prepared for common issues can save time and frustration later on.
If your LEDs do not light up after installation:
- Check if the power supply is functioning properly by testing it with a multimeter.
- Ensure all connections are secure; loose wires can disrupt current flow.
- Verify that polarity is correct; reversing positive and negative connections can prevent operation entirely.
Flickering can occur due to:
- An inadequate power supply that cannot provide sufficient current.
- Loose connections that intermittently break contact.
Check all connections thoroughly and consider upgrading your power supply if necessary; consistent performance is key for effective lighting solutions.
If LEDs become too hot:
- Ensure they are not overloaded beyond their rated wattage; exceeding this limit can shorten their lifespan significantly.
- Provide adequate ventilation around fixtures; overheating can lead to failure over time.
LED lighting offers numerous advantages over traditional lighting options that make it an attractive choice for homeowners and businesses alike:
- Energy Efficiency: Consumes significantly less energy than incandescent or fluorescent bulbs—this translates into lower electricity bills over time.
- Long Lifespan: Can last up to 25 times longer than traditional bulbs—this means less frequent replacements, reducing waste.
- Low Heat Emission: Produces very little heat compared to incandescent bulbs—this contributes to a cooler environment in enclosed spaces.
- Versatility: Available in various colors and styles for different applications—whether you're looking for soft ambient light or bright task lighting, there's an LED option available.
Wiring LED lighting may seem daunting at first, but with proper preparation and understanding of each step involved, it can be a straightforward process that enhances both functionality and aesthetics in any space. Whether you're enhancing your home's ambiance with strip lights or replacing old bulbs with energy-efficient LEDs, following these guidelines will help ensure a successful installation tailored to your needs.
By taking safety precautions seriously and carefully following each step outlined above, you can enjoy all the benefits that LED lighting has to offer while creating a beautiful environment in your home or workspace.
You need a power supply that matches both the voltage rating (typically 12V or 24V) of your LED strips and can handle their total wattage requirements without exceeding its capacity.

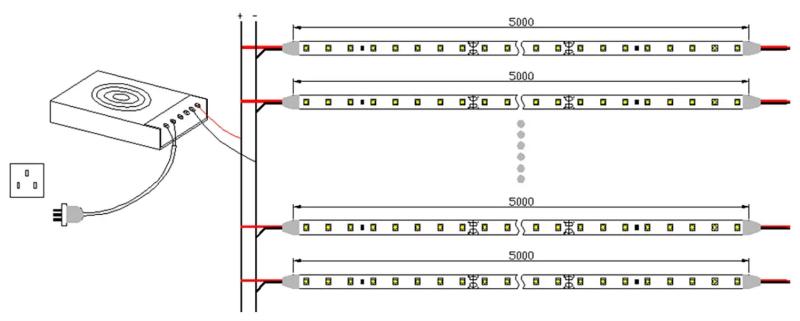

Yes, you can connect multiple strips together as long as you do not exceed the maximum allowable length recommended by manufacturers based on power supply output capacity—this ensures consistent brightness across all connected strips.
Look for designated cut lines marked on each strip; these are usually indicated by scissor icons or lines between copper pads—cutting along these lines ensures no damage occurs while allowing flexibility in design.
Yes, but ensure that you use outdoor-rated LEDs specifically designed for wet or damp conditions—this prevents moisture damage which could lead to failure over time.
Check if you are using an appropriate power supply; if it's underpowered relative to total wattage needed by connected strips/bulbs consider upgrading it accordingly or reducing number of connected units until brightness improves significantly.
