How To Install under Cabinet Led Tape Lighting?

Views: 222     Author: Katherine     Publish Time: 12-05-2024      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
sharethis sharing button

Content Menu

Understanding LED Tape Lighting

>> Benefits of LED Tape Lighting

Preparing for Installation

>> Tools and Materials Needed

>> Planning Your Layout

Installation Steps

>> Step 1: Cut the LED Tape

>> Step 2: Test the Lights

>> Step 3: Clean the Surface

>> Step 4: Peel and Stick

>> Step 5: Secure Connections

>> Step 6: Mounting Channels (Optional)

>> Step 7: Connect Power Supply

>> Step 8: Final Testing

>> Step 9: Conceal Wires

Maintenance Tips

Frequently Asked Questions

>> 1.What type of power supply do I need for my LED tape lights?

>> 2.Can I cut my LED tape lights?

>> 3.How do I connect multiple strips together?

>> 4.Are there any safety concerns with installing under cabinet lighting?

>> 5.Can I use dimmable LEDs for under cabinet lighting?

Under cabinet LED tape lighting is an excellent way to enhance the ambiance and functionality of your kitchen or workspace. This guide will walk you through the entire process of selecting, preparing, and installing LED tape lights under your cabinets, ensuring a professional-looking finish that brightens your space effectively. With the right approach, you can transform your kitchen into a well-lit, inviting area that is not only aesthetically pleasing but also practical for everyday tasks.

Understanding LED Tape Lighting

LED tape lighting is a flexible strip embedded with light-emitting diodes (LEDs). It is available in various lengths, colors, and brightness levels, making it a versatile choice for under cabinet installations. The benefits of using LED tape include energy efficiency, long lifespan, and ease of installation. Understanding these features can help you make an informed decision about the best lighting solutions for your home.

Benefits of LED Tape Lighting

LED tape lighting offers several advantages:

- Energy Efficiency: LEDs consume significantly less power compared to traditional incandescent or fluorescent bulbs. This not only helps reduce your electricity bills but also contributes to a lower carbon footprint, making it an environmentally friendly choice.

- Long Lifespan: LED lights can last up to 50,000 hours or more, reducing the need for frequent replacements. This longevity means less waste and fewer trips to the store for replacements.

- Customizable: Available in various colors and brightness levels, allowing you to create the desired atmosphere. Whether you prefer warm white for a cozy feel or bright white for task-oriented lighting, there's an option that suits your needs.

- Flexible Installation: The adhesive backing allows for easy application on various surfaces. This flexibility means you can install them in tight spaces or along curves without worrying about complicated mounting hardware.

Preparing for Installation

Before you begin the installation process, proper preparation is essential. This section will cover the necessary tools and materials needed for your project. Taking the time to gather everything in advance will streamline the installation process and help avoid interruptions.

Tools and Materials Needed

Gather the following tools and materials:

- LED tape lights: Choose high-quality strips that suit your design preferences and functional needs.

- Power supply (transformer): Ensure it matches the voltage requirements of your LED tape lights.

- Connecting wires: These may be necessary if you plan to connect multiple strips together.

- Scissors (for cutting the tape): A sharp pair will ensure clean cuts at designated points.

- Measuring tape: Accurate measurements will help in planning the layout effectively.

- Level: To ensure that your installation is straight and visually appealing.

- Drill (if mounting is required): Some installations may need additional support.

- Screwdriver: For securing any mounts or fixtures if applicable.

- Adhesive backing (if not pre-applied): Some strips may require additional adhesive for better grip.

- Optional: aluminum channels for a professional finish: These channels not only protect the strips but also provide a sleek look.

Planning Your Layout

Measure the area where you plan to install the LED tape lights. Consider the following:

- Length of Cabinets: Measure the length of each cabinet where you want to install the lights. This step ensures that you purchase enough LED strip length without excess waste.

- Power Source Location: Identify where you will plug in the power supply. Ensure it is easily accessible so that you can turn it on or off without difficulty.

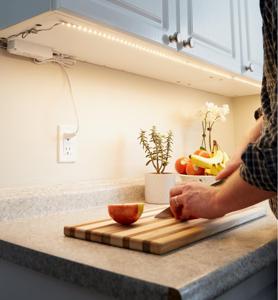

- Light Placement: Decide whether you want the lights at the front edge of the cabinet or recessed further back. Front placement provides direct illumination on countertops, while recessed placement offers a more subtle glow.

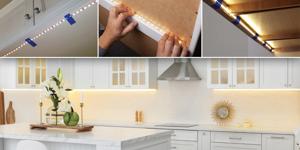

Smart LED Strip Lights

Installation Steps

Now that you have prepared your area and gathered your materials, follow these steps to install your under cabinet LED tape lighting. Each step is crucial to achieving a successful installation that meets both aesthetic and functional requirements.

Step 1: Cut the LED Tape

Most LED tape lights come with designated cut points marked on them. Use scissors to cut the tape at these points to achieve the desired length. Make sure not to cut between these points, as this can damage the strip and render it unusable. Taking care during this step ensures that each segment functions properly when installed.

Step 2: Test the Lights

Before permanently affixing the LED strips, connect them temporarily to ensure they work correctly. Plug in your power supply and check if all sections of the tape light illuminate properly. If any sections do not light up, check your connections carefully. Testing before installation saves time and effort later on.

Step 3: Clean the Surface

Clean the underside of your cabinets thoroughly to ensure that dust and grease do not interfere with adhesion. A clean surface will help the adhesive stick more effectively and prevent premature peeling over time. Use a mild cleaner and a soft cloth to avoid damaging any finishes on your cabinets.

Step 4: Peel and Stick

Remove the adhesive backing from one end of the LED strip and press it firmly against the cabinet's underside. Gradually peel away more of the backing while pressing down on the strip to avoid air bubbles. Ensuring a smooth application will enhance both appearance and performance.

Step 5: Secure Connections

If your installation requires connecting multiple strips or extending beyond one power supply, use connecting wires as needed. Ensure that all connections are secure and that positive and negative terminals align correctly. Proper connections are essential for safety and functionality.

Step 6: Mounting Channels (Optional)

For a more finished look, consider using aluminum channels. Cut these channels to fit your strips and mount them under your cabinets using screws or adhesive. Place your LED strips inside these channels for added protection and a sleek appearance. Channels can also help diffuse light evenly across surfaces.

Step 7: Connect Power Supply

Once all strips are installed, connect them to your power supply according to manufacturer instructions. Ensure that all connections are tight and secure; loose connections can lead to flickering lights or complete failure of sections.

Step 8: Final Testing

Plug in your power supply and test all sections of your LED tape lighting once more. Check for any flickering or dim sections; if found, double-check connections. This final testing phase ensures everything operates smoothly before completing your project.

Step 9: Conceal Wires

If you have visible wires from your installation, consider using cable clips or raceways to conceal them neatly along walls or inside cabinets. A tidy appearance enhances overall aesthetics while preventing potential damage from exposed wires.

Maintenance Tips

To ensure longevity and optimal performance of your under cabinet LED tape lighting:

- Regularly dust off any dirt or grease from the strips using a soft cloth; this prevents buildup that could affect brightness.

- Avoid using harsh chemicals that may damage adhesive; instead, opt for gentle cleaners suitable for electronics.

- Replace any faulty sections promptly to maintain uniform lighting across all areas; this keeps your space looking its best.

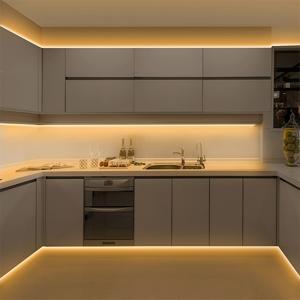

DIY LED Strip Lights

Frequently Asked Questions

1.What type of power supply do I need for my LED tape lights?

You need a power supply compatible with your LED strip's voltage (commonly 12V or 24V). Check specifications before purchasing to ensure compatibility with both voltage requirements and wattage ratings.

2.Can I cut my LED tape lights?

Yes, you can cut them at designated points marked on the strip itself. Ensure you do not cut between these points as it can damage the circuit; cutting at proper locations allows for customization without loss of functionality.

3.How do I connect multiple strips together?

Use connector wires or soldering techniques to join multiple strips together while ensuring correct polarity alignment; improper connections can lead to malfunctioning lights or even damage.

4.Are there any safety concerns with installing under cabinet lighting?

Always ensure that connections are secure and that you use a transformer rated for your specific setup; avoid overloading circuits by checking wattage ratings against what is being used in total across all installed lights.

5.Can I use dimmable LEDs for under cabinet lighting?

Yes, many LED tapes are dimmable if paired with a compatible dimmer switch designed specifically for LEDs; this feature allows you greater control over brightness levels based on different tasks or moods.

Installing under cabinet LED tape lighting can dramatically enhance both functionality and aesthetics in your kitchen or workspace. By following this comprehensive guide, you can achieve a professional-looking installation that provides ample light for all your tasks while adding a modern touch to your home decor. With careful planning, execution, and maintenance, you'll enjoy beautifully illuminated spaces tailored perfectly to meet your needs.
