The LED Street Light Lens is a core optical component that determines the efficiency, uniformity, and safety of modern street lighting. As global demand for energy-efficient and high-performance outdoor lighting grows, manufacturers like Brightlx Optics must ensure that every LED street light lens prototype meets rigorous standards before mass production. This comprehensive guide will walk you through the essential steps, best practices, and advanced techniques for testing and validating your LED street light lens prototype, ensuring it delivers optimal performance in real-world conditions.

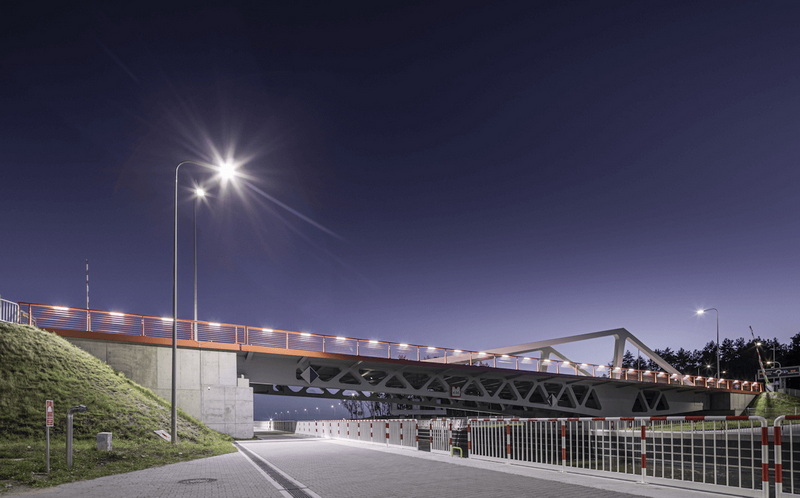

How to Test and Validate Your LED Street Light Lens Prototype

Understanding the Role of the LED Street Light Lens

The LED Street Light Lens shapes, directs, and controls the distribution of light emitted by LEDs. Its design affects:

- Illuminance Uniformity: Ensures even lighting across roadways, minimizing dark spots and glare.

- Energy Efficiency: Maximizes the use of emitted light, reducing waste and power consumption.

- Safety: Enhances visibility for drivers and pedestrians, reducing accidents.

- Compliance: Meets international standards for road lighting, such as EN13201 or local regulations.

A well-designed LED street light lens can dramatically improve the performance and longevity of street lighting systems. The lens's optical design influences the beam angle, intensity distribution, and glare control, all critical factors in delivering quality lighting that meets both functional and regulatory requirements.

Pre-Test Preparations

Before starting the actual testing, thorough preparation is crucial to ensure accurate and reliable results.

Prototype Inspection

- Visual Check: Inspect for surface defects, bubbles, or contamination on the lens. Even microscopic imperfections can cause light scattering or reduce transmittance.

- Dimensional Measurement: Verify dimensions against design specifications using precision tools such as calipers or coordinate measuring machines (CMM). Accurate dimensions ensure the lens fits perfectly with the LED module and maintains the intended optical path.

- Material Verification: Confirm lens material (e.g., PMMA, polycarbonate) matches optical and mechanical requirements. Material choice affects light transmission, UV resistance, and mechanical durability.

Test Equipment Setup

- Goniophotometer: Measures the angular light distribution pattern of the lens prototype.

- Integrating Sphere: Assesses total luminous flux and optical efficiency.

- Lux Meter: Evaluates illuminance at specific distances and angles.

- Thermal Camera: Monitors heat dissipation and thermal stability of the lens.

- Environmental Chambers: Simulate temperature, humidity, and UV exposure to test durability.

Proper calibration of all instruments before testing is essential to guarantee data accuracy.

Core Testing Methods for LED Street Light Lens Prototypes

Photometric Testing

Photometric testing is fundamental to understanding how your LED street light lens manipulates light output.

Key Parameters:

- Luminous Flux (lm): The total amount of visible light emitted through the lens.

- Luminous Intensity (cd): Brightness in specific directions, critical for beam shaping.

- Beam Angle: The angular spread of light, influencing coverage area.

- Illuminance (lux): The light level on the target surface, such as a roadway.

- Uniformity Ratio: The consistency of light distribution, important for safety and aesthetics.

Typical Procedure:

1. Mount the Prototype: Secure the LED street light lens on a test fixture integrated with the LED source.

2. Set Up Measurement Devices: Position the goniophotometer and lux meters at specified distances and angles.

3. Record Data: Measure light output at various angles and positions to generate a comprehensive light distribution map.

This testing reveals whether the lens meets design goals such as minimizing glare, maximizing road illumination, and achieving energy efficiency.

Optical Quality Inspection

Ensuring the optical quality of the LED street light lens is critical for performance and durability.

Methods:

- Surface Inspection: Use high-resolution cameras or microscopes to detect surface scratches, bubbles, or inclusions that could scatter light or weaken the lens.

- Transmittance Testing: Measure how much light passes through the lens material. High transmittance (typically above 90%) is essential for maintaining luminous efficiency.

- Defect Detection: Automated vision systems can classify and quantify defects, ensuring consistent quality across production batches.

Optical clarity and surface finish directly affect the lens's ability to focus and direct light efficiently.

Environmental and Mechanical Testing

The LED street light lens must withstand harsh outdoor conditions over its operational lifetime.

Common Tests:

- Thermal Cycling: Expose the lens to repeated heating and cooling cycles to assess resistance to cracking, warping, or material fatigue.

- UV Aging: Simulate prolonged sunlight exposure to evaluate yellowing, brittleness, or loss of transmittance.

- Impact and Vibration Resistance: Test the lens's ability to survive shocks from installation, wind, or passing vehicles without cracking or deforming.

- Water and Dust Resistance: Verify compliance with IP ratings to ensure protection against ingress of dust and moisture.

These tests ensure the lens maintains optical performance and structural integrity under real-world environmental stresses.

Simulation and Modeling

Before physical prototyping, optical simulation software can predict lens performance, reducing development time and costs.

- Ray Tracing: Simulates the path of light rays through the lens, identifying hotspots, dark zones, or glare issues.

- Design Optimization: Adjust lens geometry, surface textures, or refractive indexes to improve uniformity, efficiency, and compliance with lighting standards.

- Thermal Modeling: Predicts heat buildup and dissipation, important for lens material selection and longevity.

Simulation results guide design decisions and provide benchmarks for physical testing validation.

LED Street Light Lens Suppliers

Validation: Comparing Prototype Results to Standards

After collecting test data, it is crucial to compare the results to relevant standards and customer requirements to validate the prototype's performance.

- International Standards: Compliance with standards such as EN13201 (European road lighting), IESNA LM-79 (North American photometric testing), and local regulations ensures safety and market acceptance.

- Customer Specifications: Meeting or exceeding client-defined parameters for beam angle, intensity, uniformity, and efficiency is essential for customer satisfaction.

- Simulation vs. Reality: Cross-check measured data against simulation predictions to identify any discrepancies caused by manufacturing tolerances or material variations.

A validated LED street light lens prototype that meets these criteria is ready for pilot production and field deployment.

Real-World Field Testing

Laboratory tests are necessary but not sufficient on their own. Field testing provides the ultimate validation of the LED street light lens prototype.

Steps:

1. Installation: Mount the prototype lens on a street light fixture installed in a representative outdoor environment.

2. Performance Measurement: Use lux meters and imaging devices to measure illuminance, uniformity, and glare under actual conditions.

3. User Feedback: Collect observations from drivers, pedestrians, and maintenance personnel regarding visibility and comfort.

4. Long-Term Monitoring: Assess performance over different weather conditions, seasons, and times of day to ensure consistent quality.

Field testing verifies the lens's ability to deliver safe, efficient, and compliant lighting in real-world applications.

Documenting and Iterating the Prototype

Comprehensive documentation and iterative refinement are key to successful product development.

- Test Reports: Maintain detailed records of all testing parameters, results, and environmental conditions.

- Root Cause Analysis: Investigate any failures or performance shortfalls to identify design or manufacturing issues.

- Design Updates: Refine CAD models and manufacturing processes based on test feedback.

- Customer Collaboration: Incorporate client input from pilot installations to tailor the lens design to specific needs.

This iterative process ensures continuous improvement and higher product quality.

Conclusion

Testing and validating your LED street light lens prototype is a meticulous, multi-step process that ensures your product delivers maximum efficiency, safety, and reliability. By combining advanced photometric testing, optical inspection, environmental durability assessments, and real-world field trials, manufacturers like Brightlx Optics can confidently bring high-performance LED street light lenses to the global market. Rigorous validation not only guarantees compliance with international standards but also builds trust with customers and end-users, paving the way for innovation and sustainable urban lighting.

LED Street Light Lens vs Traditional Street Light Lens Which One Wins

FAQs

1. What is the most important parameter to test in an LED street light lens prototype?

The most critical parameter is the light distribution pattern. It determines how evenly and efficiently the lens illuminates the target area, impacting safety and compliance.

2. How do you detect defects in an LED street light lens?

Defects are detected using visual inspection systems, high-resolution cameras, and automated algorithms that identify bubbles, scratches, or inclusions on the lens surface.

3. Why is field testing necessary after lab validation?

Field testing exposes the lens to real-world conditions such as temperature changes, humidity, and environmental stress, ensuring reliable performance beyond controlled lab environments.

4. What standards should LED street light lenses comply with?

LED street light lenses should meet standards like EN13201, IESNA LM-79, and local road lighting codes to ensure safety, efficiency, and regulatory compliance.

5. How can simulation software help in lens prototype validation?

Simulation software allows for virtual testing of lens designs, predicting light distribution and identifying potential issues before physical prototypes are made, saving time and resources.
