Selecting the appropriate cable size for LED lighting is crucial for ensuring safety, efficiency, and optimal performance. This guide will delve into the various factors that influence cable size selection, the types of cables available, and the calculations necessary to determine the right size for your specific LED lighting needs. Understanding these elements will not only help you avoid potential hazards but also enhance the longevity and functionality of your lighting system.
LED lights are known for their energy efficiency and long lifespan compared to traditional lighting options. However, they still require proper electrical wiring to function effectively. When determining what size cable to use for LED lighting, several key factors must be considered. Each of these factors plays a significant role in ensuring that your lighting setup operates smoothly and safely.
The power consumption of LED lights is typically measured in watts. Most standard LED bulbs consume between 5 to 15 watts, while LED strips can vary significantly based on their length and brightness. To accurately choose a cable size, you need to calculate the total wattage of your lighting setup. This calculation is essential because it directly influences the amount of current flowing through the wires. Higher wattage means more current, which necessitates thicker cables to handle the load without overheating. Additionally, understanding power consumption helps you evaluate energy efficiency and potential cost savings over time.
Most residential LED lighting operates on either 120V or 240V systems. However, low-voltage LED systems (12V or 24V) are also common, especially in outdoor or decorative applications. The voltage level will affect the cable size required, as lower voltage systems often require thicker cables to reduce voltage drop over distance. It's important to note that using the correct voltage not only ensures safety but also maximizes the performance of your LEDs. For instance, using a transformer to step down from 120V to 12V can help in applications where lower voltage is needed, but it also requires careful consideration of the cable used to prevent losses.
The distance between your power source (such as a transformer or circuit breaker) and the LED lights is another critical factor. Longer distances can lead to voltage drops, which may affect the performance of your lights. Therefore, it's essential to consider how far the cable will run when selecting its size. A significant voltage drop can result in dimmer lights or inconsistent performance across multiple fixtures. In addition to calculating distance, consider any obstacles or routing challenges that may require additional cable length, which could further impact voltage drop.
To determine the appropriate cable size for your LED lighting, follow these steps:
First, calculate the total wattage of all LED fixtures you plan to install. For example, if you have ten 10-watt bulbs, your total wattage would be 100 watts. This total wattage serves as a foundation for all subsequent calculations and helps you understand how much electrical load your circuit will need to support.
Next, convert wattage into current (amps) using the formula:
$$
\text{Current (Amps)} = \frac{\text{Total Wattage}}{\text{Voltage}}
$$
For instance, if you have a total of 100 watts on a 12V system:
$$
\text{Current} = \frac{100 \text{ watts}}{12 \text{ volts}} \approx 8.33 \text{ amps}
$$
Understanding current draw is vital because it directly correlates with heat generation in wires; higher currents can lead to overheating if not managed properly with appropriate wire sizing.
Voltage drop is a critical consideration in longer runs of cable. A general rule is to keep voltage drop below 5% for optimal performance. You can calculate voltage drop using the formula:
$$
\text{Voltage Drop} = \frac{2 \times \text{Length} \times \text{Current} \times \text{Resistance}}{1000}
$$
Where resistance is specific to the wire gauge you are considering. Keeping voltage drop within acceptable limits ensures that your LEDs receive sufficient power without dimming or flickering.

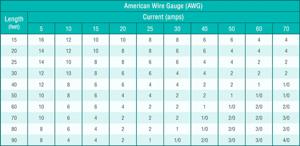

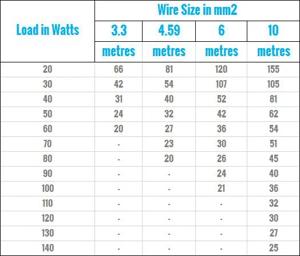

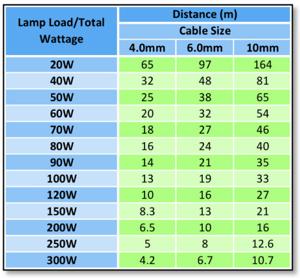

After calculating the current and considering voltage drop, consult a wire gauge chart to find the appropriate size cable. For example:
- For a current of up to 10 amps over short distances (less than 50 feet), a 14-gauge wire may suffice.
- If running longer distances or higher currents (above 10 amps), consider using a thicker wire such as 12-gauge or even 10-gauge.
Wire gauge charts provide valuable insights into how different wire sizes handle varying amounts of current over specific distances while minimizing heat buildup and ensuring safe operation.
When selecting cables for LED lighting, it's essential to understand the types available and their specific uses.
Cables come in two primary types: solid core and stranded wire.
- Solid Core: This type consists of a single solid conductor and is typically easier to connect and terminate. Solid core wires are often used in fixed installations where flexibility is not a concern.
- Stranded Wire: Composed of multiple smaller wires twisted together, stranded wire offers greater flexibility but can be more challenging to work with. Stranded wires are ideal for applications requiring movement or flexibility, such as connecting fixtures that may need repositioning.
For most residential applications involving LED lights, solid core wire is often recommended due to its ease of use and reliability in stationary setups.
The insulation material surrounding electrical wires also affects performance and safety. Common insulation types include PVC (Polyvinyl Chloride) and THHN (Thermoplastic High Heat-resistant Nylon-coated).
- PVC: Suitable for indoor use; it offers good resistance against moisture and abrasion but may not withstand high temperatures.
- THHN: More versatile; it can be used in both indoor and outdoor applications and withstands higher temperatures without degrading.
Choosing the right insulation type based on your installation environment ensures durability and longevity while minimizing risks associated with electrical failures.
When working with electrical installations, safety should always be a priority. Here are some key safety considerations:
Always adhere to local electrical codes and regulations when selecting cable sizes and installing wiring systems. These codes are designed to ensure safety and prevent hazards such as overheating or fire risks. Familiarizing yourself with these regulations not only protects you but also ensures that any work done meets legal standards.
Ensure that you use connectors rated for the wire gauge you select. Using incorrect connectors can lead to poor connections that may cause overheating or failures in your lighting system. Proper connectors help maintain secure connections that prevent arcing or sparking—common causes of electrical fires.
Before beginning any electrical work, always turn off power at the circuit breaker to prevent electric shock or injury. This simple yet crucial step can save lives by minimizing risks associated with accidental contact with live wires during installation.
Choosing the right cable size for your LED lighting is essential for ensuring efficient operation and safety. By understanding power consumption, voltage requirements, distance from power sources, and following proper calculation methods, you can select an appropriate cable that meets your needs effectively.
In summary, consider factors such as total wattage, current requirements, voltage drop over distance, and local electrical codes when determining what size cable for LED lighting is best suited for your project. Taking these considerations into account will lead not only to better performance but also enhance safety in your electrical installations.
For most residential LED lights operating at low voltage (12V), an 18-gauge or 16-gauge wire is typically sufficient for short runs up to about 20 feet without significant voltage drop issues. For longer distances or higher wattage setups exceeding 10 amps, consider using 14-gauge or even 12-gauge wire to ensure safe operation without overheating.
Use the formula $$ \text{Voltage Drop} = \frac{2 \times \text{Length} \times \text{Current} \times \text{Resistance}}{1000} $$ where resistance depends on the wire gauge used; this calculation helps ensure that your LEDs receive adequate power over long distances without significant loss in brightness or efficiency.
While you can technically use various wires for LED lights due to their low current draw compared to traditional bulbs, it's recommended to use wires specifically rated for electrical installations that meet local codes—this choice enhances safety and reliability in your setup.
Using a wire that's too small can lead to overheating due to excessive current flow through the wire; this poses fire hazards and may damage your lighting fixtures by causing them to flicker or fail prematurely due to insufficient power supply.
Solid core wire is generally easier to work with and connect in most residential applications; however, stranded wire offers more flexibility if needed in tight spaces or complex installations where movement might occur—choose based on specific project requirements.
