The rapid global adoption of LED street lighting has revolutionized urban illumination, delivering energy efficiency, longevity, and superior light quality. At the heart of every high-performance LED street light is a precision-engineered lens, responsible for shaping and directing light to maximize visibility and safety. As a leading Chinese LED lens manufacturer, Brightlx Optics specializes in providing optical solutions and comprehensive ODM & OEM services for international clients. This article explores how advanced injection molding technology elevates the quality of LED street light lenses, ensuring optimal performance, reliability, and customization for diverse lighting applications.
LED street light lenses are critical optical components that control and direct the light emitted from LED sources. Their primary functions include shaping light distribution to achieve precise beam angles for uniform road illumination and minimizing light pollution. They enhance efficiency by maximizing the usable light output and reducing energy wastage. Additionally, they improve safety by ensuring consistent brightness and reducing glare for drivers and pedestrians. Beyond optics, these lenses serve as a protective barrier against dust, moisture, and environmental contaminants, helping to extend the lifespan of LED modules. A well-designed LED street light lens not only optimizes lighting performance but also contributes to the sustainability and cost-effectiveness of urban lighting infrastructures.
Injection molding is the dominant manufacturing method for producing high-quality LED street light lenses. This process involves injecting molten plastic into a precision-engineered mold, where it cools and solidifies into the desired lens shape. The technology offers several key advantages:
- High Precision: Injection molding can replicate complex optical geometries with tight tolerances, essential for achieving the exact light distribution patterns required for street lighting.
- Cost-Effective Mass Production: It is ideal for large-scale manufacturing, significantly reducing per-unit costs while maintaining consistent quality.
- Material Versatility: The process supports a wide range of optical-grade plastics, such as PMMA (acrylic) and PC (polycarbonate), allowing manufacturers to select materials tailored to specific performance needs.
- Customization: Injection molding enables rapid prototyping and tailored solutions for specific lighting requirements, including varying beam angles and lens shapes.
The combination of these advantages makes injection molding indispensable for producing LED street light lenses that meet the demanding standards of modern urban lighting.
The choice of material profoundly influences the optical performance, durability, and environmental resistance of LED street light lenses. Common materials include:
- PMMA (Acrylic): Known for its high optical clarity and excellent UV resistance, PMMA is widely used in outdoor lighting applications. It provides excellent light transmission and maintains its transparency over long periods, making it suitable for lenses exposed to sunlight and harsh weather.
- PC (Polycarbonate): Offering superior impact resistance and good optical quality, PC is preferred in environments where mechanical stress or extreme temperatures are concerns. Its toughness ensures that lenses can withstand accidental impacts or vandalism without cracking.
- PLEXIGLAS® Optical HT: This specialized acrylic variant offers enhanced heat deflection temperatures and superior optical properties, making it ideal for high-performance street lighting that generates significant heat or requires extended service life.
Proper drying and handling of these materials before molding are critical to prevent defects such as bubbles or haze, which can degrade optical clarity. Additionally, the selection process may consider factors like thermal expansion, chemical resistance, and environmental sustainability.
The mold is the foundation of lens quality. Advanced mold design ensures accurate replication of the intended optical geometry, delivering lenses that meet stringent performance criteria. Key aspects of mold design include:
- Surface Finish: The mold cavity's surface must be polished to a mirror finish to produce defect-free lens surfaces that maximize light transmission and minimize scattering.
- Dimensional Accuracy: The mold must maintain tight tolerances to ensure uniform thickness and precise optical features, which directly affect light distribution.
- Cooling Efficiency: Uniform cooling channels within the mold prevent warping and internal stresses that can distort the lens shape or cause optical aberrations.
- Ventilation: Proper venting prevents trapped air and gas bubbles during injection, which can cause defects.
Manufacturers like Brightlx Optics invest heavily in mold-making technology, often utilizing CNC machining, EDM (electrical discharge machining), and polishing techniques. In-house mold fabrication capabilities allow for rapid prototyping, iterative design improvements, and tight control over quality.
The injection molding process for LED street light lenses involves several critical stages:
1. Material Preparation: Optical-grade plastics such as PMMA or PC are dried thoroughly to remove moisture, which can cause bubbles and reduce clarity.
2. Mold Setup: The mold is installed in the injection molding machine. Temperature, pressure, and injection speed parameters are carefully calibrated based on the material and lens design.
3. Injection: Molten plastic is injected into the mold cavity under controlled pressure and speed. The flow must be smooth and uniform to avoid defects like flow lines or weld marks.
4. Cooling: The lens cools and solidifies inside the mold. Cooling time is optimized to ensure uniform solidification, preventing warping or internal stresses.
5. Ejection: The solidified lens is ejected carefully to avoid surface damage.
6. Post-Processing: Includes laser de-gating to remove excess material, cleaning, and inspection in dust-free environments to maintain optical purity.
Automation and robotics are increasingly integrated into this process to enhance repeatability, reduce contamination, and speed up production cycles.
Maintaining consistent quality is paramount to delivering lenses that perform reliably over years of outdoor use. Quality control measures include:
- Optical Inspection: Visual and automated inspections detect bubbles, flow lines, weld marks, and surface defects that could degrade light transmission or cause glare.
- Dimensional Measurement: Precision instruments verify that lenses conform to specified dimensions and tolerances, ensuring proper fit and optical performance.
- Photometric Testing: Lenses are tested for light distribution patterns, beam angles, and intensity uniformity using goniophotometers or integrating spheres.
- Material Property Testing: Transparency, UV resistance, impact strength, and thermal stability are assessed to confirm material integrity.
- Environmental Testing: Lenses may undergo accelerated aging, temperature cycling, and humidity exposure to simulate real-world conditions.
Cleanroom production environments and automated inspection systems further reduce the risk of contamination and defects, ensuring that each lens meets or exceeds industry standards.
Despite advanced technology, certain defects can occur during injection molding. Understanding their causes and remedies is essential for maintaining lens quality:
- Shrinkage: Caused by uneven wall thickness or inadequate cooling, shrinkage leads to dimensional inaccuracies and surface depressions. Solutions include optimizing mold design for uniform thickness, improving cooling channel layout, and adjusting injection pressure.
- Flow Lines: Visible streaks caused by temperature differences or rapid injection speeds. Fine-tuning injection parameters and mold temperature can minimize flow lines.
- Air Marks: Surface blemishes resulting from trapped air or poor mold venting. Enhancing mold venting and adjusting injection speed help prevent air marks.
- Weld Lines: Lines formed where two molten flow fronts meet without proper fusion, weakening the lens structurally and optically. Increasing melt temperature, optimizing gate locations, and adjusting injection speed reduce weld lines.
- Bubbles: Caused by moisture in the material or trapped gases. Thorough drying of resins and improved mold venting eliminate bubbles.
Continuous process monitoring, skilled operators, and iterative mold adjustments are vital to reducing these defects and ensuring premium lens quality.
The LED lighting industry continues to evolve, driving innovations in lens design that enhance performance and adaptability:

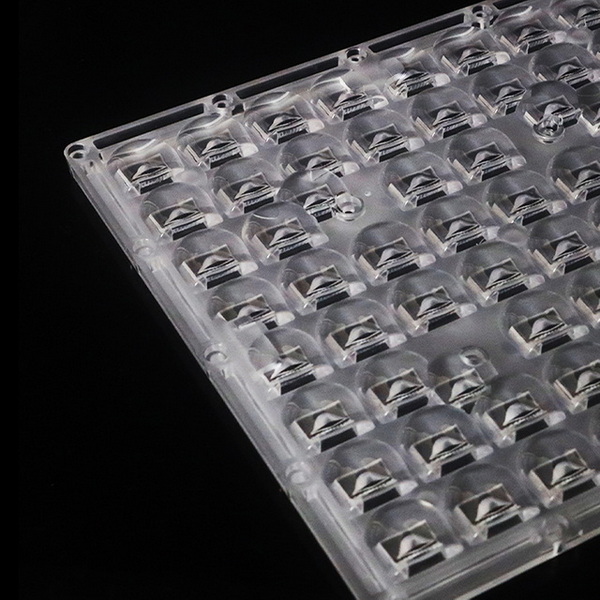

- Multi-Lens Arrays: Combining multiple small lenses into an array allows for precise control of light distribution, reducing glare and light pollution while improving uniformity.
- Freeform Optics: Custom-designed lens surfaces enable tailored beam patterns that meet specific roadway or urban lighting requirements, improving efficiency and visual comfort.
- Smart Integration: Lenses designed to incorporate sensors and communication modules facilitate adaptive lighting systems, enabling dimming, motion detection, and remote control for smart city applications.
- Advanced Materials: Development of new plastics with improved heat resistance, UV stability, and environmental durability extends the service life of lenses under harsh outdoor conditions.
- Surface Coatings: Anti-reflective and hydrophobic coatings enhance light transmission and reduce maintenance by preventing dirt accumulation.
These advancements help municipalities and lighting designers achieve energy savings, improved safety, and environmental sustainability.
Brightlx Optics distinguishes itself through comprehensive ODM (Original Design Manufacturing) and OEM (Original Equipment Manufacturing) services tailored to global clients' needs:
- Custom Optical Design: Collaborating closely with clients to develop lens geometries and materials optimized for specific lighting applications, including highways, urban streets, and architectural lighting.
- Rapid Prototyping: Leveraging in-house mold making and injection molding capabilities to quickly produce prototypes for testing and validation.
- Flexible Production: Supporting both small batch runs for niche applications and large-scale mass production with consistent quality.
- Intellectual Property Protection: Strict confidentiality agreements safeguard client innovations and designs.
- Global Logistics and Support: Ensuring timely delivery and after-sales service to international customers.
This integrated service model enables clients to bring innovative LED street light solutions to market faster and more efficiently.
Injection molding technology plays a pivotal role in producing high-quality LED street light lenses that meet the rigorous demands of modern urban lighting. By combining advanced materials, precision mold design, meticulous process control, and continuous innovation, manufacturers like Brightlx Optics deliver lenses that optimize light distribution, enhance energy efficiency, and ensure long-term durability. The integration of ODM and OEM services further empowers global clients to develop customized optical solutions tailored to diverse applications. As cities worldwide pursue smarter, safer, and more sustainable lighting infrastructures, the quality and performance of LED street light lenses will remain central to achieving these goals.
LED street light lenses are typically made from optical-grade PMMA (acrylic) or PC (polycarbonate), chosen for their clarity, UV resistance, and impact strength. Advanced materials like PLEXIGLAS® Optical HT offer enhanced heat resistance for demanding applications.
Injection molding enables precise replication of complex optical geometries, ensures consistent quality in mass production, and supports the use of high-performance materials. It also allows for rapid prototyping and customization to meet specific lighting needs.
Common defects include shrinkage, flow lines, air marks, weld lines, and bubbles. These can be minimized through optimized mold design, precise process control, and thorough material preparation.
Yes, manufacturers like Brightlx Optics offer full ODM & OEM services, providing custom lens designs, rapid prototyping, and tailored solutions for various lighting environments, from highways to architectural lighting.
Lenses undergo rigorous optical inspection, dimensional measurement, and photometric testing to verify light distribution, uniformity, and optical clarity. Automated systems and cleanroom production further ensure high quality.
