The LED street light lens is a critical component in modern outdoor lighting, directly impacting light distribution, energy efficiency, and the longevity of the fixture. As cities and businesses worldwide upgrade to LED street lighting, the choice of lens material—primarily between acrylic (PMMA) and polycarbonate (PC)—has become a pivotal decision for manufacturers, engineers, and urban planners. This comprehensive article explores the properties, advantages, disadvantages, and application scenarios of both materials, offering a detailed comparison to guide your selection process.

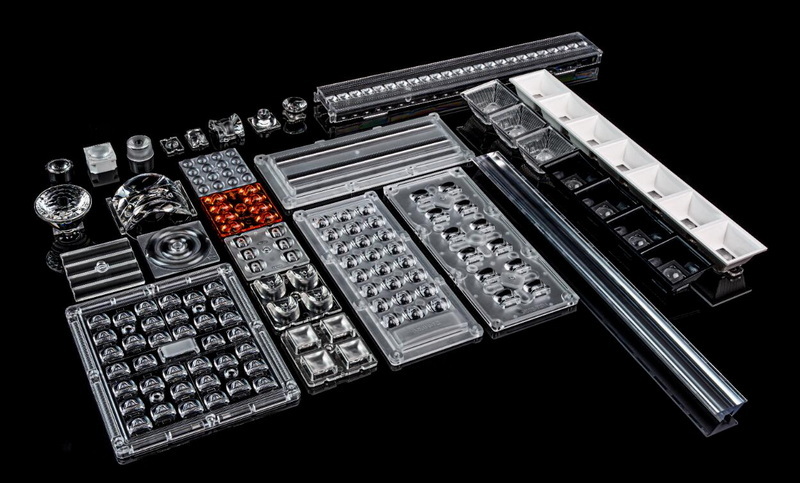

LED street light lenses serve as optical components that shape, diffuse, and direct the light emitted by LEDs. Their material properties influence:
- Light transmission and uniformity
- Impact resistance and safety
- UV and weather resistance
- Durability and longevity
- Ease of fabrication and customization
Choosing the right material is essential for maximizing the performance and lifespan of LED street lighting systems.
- High Light Transmission: Acrylic lenses offer up to 95% light transmittance, ensuring maximum brightness and efficiency in LED street lighting. This high transparency is crucial for achieving optimal illumination while minimizing energy consumption.
- Excellent Clarity: Acrylic provides superior optical clarity, making it ideal for applications where light quality and aesthetics are paramount. It maintains a crystal-clear appearance without hazing or distortion.
- UV Resistance: Acrylic has outstanding resistance to UV radiation, preventing yellowing and degradation over time—especially important for outdoor installations exposed to direct sunlight.
- Ease of Fabrication: Acrylic is easy to cut, shape, and thermoform, allowing for rapid prototyping and custom designs. This flexibility enables manufacturers to create complex lens geometries tailored to specific lighting distributions.
- Cost-Effective: Generally less expensive than polycarbonate, acrylic is suitable for large-scale projects with tight budgets, offering a balance between performance and cost.
- Aesthetic Flexibility: Acrylic is available in various colors, textures, and finishes, allowing for decorative and functional lighting solutions that enhance urban landscapes.
- Impact Resistance: Acrylic is more brittle than polycarbonate and may crack or shatter under strong impact or mechanical stress. This limitation makes it less suitable for areas prone to vandalism or accidental damage.
- Heat Resistance: Acrylic has a lower heat deflection temperature, deforming at around 92°C. This makes it less ideal for high-temperature environments or high-power LED fixtures that generate substantial heat.
- Scratch Resistance: Acrylic is more prone to surface scratches compared to polycarbonate. Although surface treatments and coatings can improve scratch resistance, acrylic lenses require careful handling during installation and maintenance.
- Commercial and architectural lighting where clarity and design are prioritized
- Signage and display cases requiring bright, uniform illumination
- Automotive lighting components such as headlights and taillights
- Consumer electronics backlighting where optical quality is essential
- Exceptional Impact Resistance: Polycarbonate is up to 250 times more impact-resistant than glass and significantly stronger than acrylic. This makes it ideal for environments prone to vandalism, accidental impacts, or harsh weather conditions.
- Good Light Transmission: Polycarbonate typically offers 88–90% light transmission, slightly lower than acrylic but still sufficient for most street lighting applications without significant loss in brightness.
- Thermal Stability: Polycarbonate can withstand continuous temperatures up to 120°C, making it suitable for high-power LED applications and hot climates where heat buildup is a concern.
- Flame Retardant and Self-Extinguishing: Polycarbonate offers higher safety standards by being flame retardant and self-extinguishing, reducing fire risks in electrical installations.
- Design Flexibility: Polycarbonate is easily injection-molded into complex shapes, including multi-lens arrays for advanced optical control. This allows for precise light distribution patterns tailored to roadways, pedestrian areas, and other outdoor spaces.
- UV Resistance (with Treatment): Polycarbonate requires UV stabilizers or coatings to prevent yellowing and degradation. Properly treated polycarbonate lenses can last many years outdoors without significant loss of optical properties.
- Lower Optical Clarity: Polycarbonate has slightly lower light transmission and clarity compared to acrylic, which may affect the crispness of light output in certain applications.
- Higher Cost: Polycarbonate is generally more expensive than acrylic, especially when UV-resistant grades and coatings are included.
- Susceptible to Scratching: Like acrylic, polycarbonate is vulnerable to surface scratches but can be enhanced with hard coatings to improve durability.
- Potential for Yellowing: Without adequate UV protection, polycarbonate lenses can yellow over time when exposed to sunlight, reducing light output and aesthetic appeal.
- Street and area lighting in demanding environments requiring durability
- Sports and stadium lighting where impact resistance is critical
- Security and industrial lighting exposed to harsh conditions
- Automotive and transportation lighting where safety and robustness are priorities

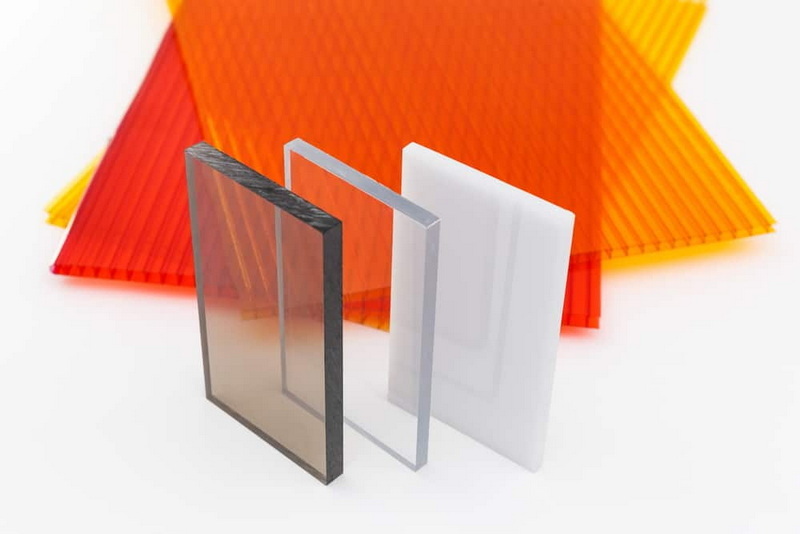

When comparing acrylic and polycarbonate for LED street light lens applications, several factors come into play beyond basic properties. Understanding these nuances helps in making an informed choice.
Acrylic's superior light transmission makes it the best choice for applications where maximum brightness and clarity are essential. Its optical purity ensures minimal light distortion, creating uniform illumination patterns that enhance visibility and safety on streets.
Polycarbonate, while slightly less transparent, compensates with its ability to be molded into complex lens shapes. This allows for more precise control of light distribution, reducing glare and light pollution in urban areas.
Polycarbonate's unmatched impact resistance makes it ideal for installations in areas prone to vandalism, heavy traffic, or extreme weather. It resists cracking and shattering, ensuring long-term reliability and reduced maintenance costs.
Acrylic, being more brittle, is better suited to controlled environments or locations where physical damage risk is low. However, its rigidity can be advantageous in maintaining lens shape under mechanical stress.
Both materials resist UV radiation, but acrylic does so inherently, while polycarbonate requires additional UV stabilizers or coatings. Acrylic's natural UV resistance means it maintains clarity and color longer without treatment.
Polycarbonate's higher heat resistance allows it to perform better in hot climates or near high-power LEDs, where thermal management is crucial to prevent lens deformation and maintain optical performance.
Acrylic is easier and cheaper to fabricate, making it favorable for large-scale production runs and projects with budget constraints. Its thermoforming capabilities allow for quick turnaround and customization.
Polycarbonate's injection molding process enables the production of highly complex lens geometries, but at a higher cost and longer lead times. The investment pays off in applications demanding durability and precision optics.
Both acrylic and polycarbonate are recyclable, but acrylic's simpler chemical structure makes recycling more straightforward. Polycarbonate recycling is more complex but still feasible. Considering the lifespan of polycarbonate lenses in harsh environments, their longer service life can offset environmental impact through reduced replacements.
- Projects prioritizing maximum light output and optical clarity for enhanced visibility
- Environments with low risk of physical impact, such as residential neighborhoods or pedestrian zones
- Installations requiring custom shapes, colors, or decorative effects to complement urban design
- Budget-sensitive projects or large-scale rollouts where cost efficiency is critical
- High-impact environments such as public parks, stadiums, or busy urban streets where vandalism or accidental damage is a concern
- Extreme temperature or harsh outdoor exposure scenarios requiring superior thermal and weather resistance
- Areas where safety and vandal resistance are critical to minimize maintenance and replacement costs
- Complex optical designs needing multi-lens arrays or advanced shapes for precise light control
The choice between acrylic and polycarbonate also involves evaluating environmental impact and economic efficiency over the product lifecycle.
- Acrylic's easier recyclability and lower production energy requirements make it a greener choice for many applications. Its UV stability reduces the need for frequent replacements, conserving resources.
- Polycarbonate's robustness and longer lifespan in challenging environments reduce waste and maintenance frequency, contributing to sustainability despite higher initial energy input.
- Both materials support energy-efficient LED lighting by maximizing light output and minimizing energy waste, aligning with global efforts to reduce carbon footprints through smart urban lighting.
Selecting the right material for your LED street light lens is a balance between optical performance, durability, cost, and environmental resistance. Acrylic (PMMA) excels in light transmission, clarity, and cost-effectiveness, making it ideal for applications where aesthetics and budget are key. Polycarbonate (PC), on the other hand, offers unmatched impact resistance, thermal stability, and safety, making it the preferred choice for demanding outdoor and high-risk environments.
Both materials have their place in the LED street lighting industry, and the optimal choice depends on the specific requirements of your project. By understanding the strengths and limitations of each, manufacturers and designers can deliver efficient, reliable, and visually appealing lighting solutions for every scenario.
Acrylic offers superior light transmission (up to 95%), excellent optical clarity, and is highly customizable for various shapes and colors. It is also more cost-effective for large-scale projects.
Polycarbonate is better suited for high-impact, outdoor environments due to its exceptional impact resistance and thermal stability. With proper UV treatment, it can withstand years of outdoor exposure without yellowing.
Yes, acrylic lenses have excellent UV resistance and maintain their clarity and color over time, making them suitable for most outdoor applications. However, they are less impact-resistant than polycarbonate.
Acrylic is generally less expensive than polycarbonate and easier to process, making it ideal for projects with tight budgets or high volume requirements.
Consider the application environment (impact risk, temperature, exposure), optical requirements (clarity, uniformity), budget, and design complexity. Acrylic is best for clarity and cost, while polycarbonate is best for durability and safety.
